Product Details
- Place of Origin: guangdong
- Brand Name: Prosperous Star
- Model Number: JDS-40XX060R1-LI
| Model | JDS-40XX060R1-LI |
| Power | 0.87W |
| VF | 57-65V |
IF | 14mA |
| CCT | 2500K~7000K |
| Luminous Flux | 115~145 lm |
| CRI | >80 |
| Luminous efficiency | >140 lm/W |
| Dimensions | 40mm |
1. Indoor Lighting
2. Decorative Lighting

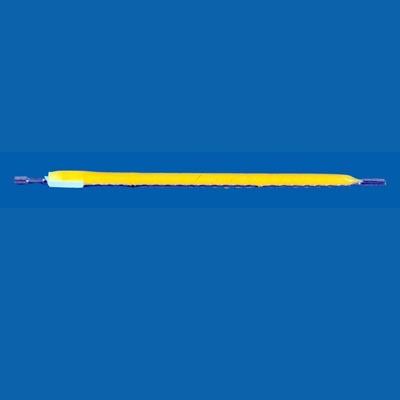

3. LED filaments can be applied for LED lighting products such as crystal celling lamp, candle lamp, bulb and wall lamp.
Product Features:
1.High luminous intensity and high efficiency.
2.High Reliability.
3.Package size:4.0*4.4*1.6mm.
4.Wide Viewing angle:360°.
5.RoHS compliant.
Electro-Optical Characteristics (Ta=25℃)°C：
| Model | Power(W) | CCT(K) | Luminous Flux(lm) | CRI | Efficiency(lm/w) | IF (mA) | VF (v) |
| JDS-40WA060R1 | 0.87 W | 2580~2870 | 115~125 | >80 | 140 | 14 | 57~65 |
| JDS-40WB060R1 | 0.87 W | 2870~3220 | 120~130 | >80 | 150 | 14 | 57~65 |
| JDS-40NA060R1 | 0.87 W | 3710~4260 | 130~145 | >80 | 160 | 14 | 57~65 |
| JDS-40NB060R1 | 0.87 W | 4745~5310 | 130~145 | >80 | 160 | 14 | 57~65 |
| JDS-40CA060R1 | 0.87 W | 5310~6020 | 130~145 | >80 | 160 | 14 | 57~65 |
| JDS-40CB060R1 | 0.87 W | 6020~7040 | 130~145 | >80 | 160 | 14 | 57~65 |
--------------------------------------------------------------------------
Absolute Maximum Ratings at Ta=25°C：
| Parameter | Forward Current | Peak Forward Current | Power | Operating Temperature | Junction Temperature | Storage Temperature | Electrostatic Discharge | Soldering Temperature | Reverse Voltage |
| Symbol | IF | IFP | Pd | Topr | Tj | Tstg | ESD | Tsol | VR |
| Rating | 14 | 20 | 1000 | -35 to 85 | 125 | -35 to 90 | 2000 | 260±5 | 10 |
| Unit | mA | mA | mW | ℃ | ℃ | ℃ | V | ℃ | V |
