Product Details
- Place of Origin: guangdong
- Brand Name: Prosperous Star

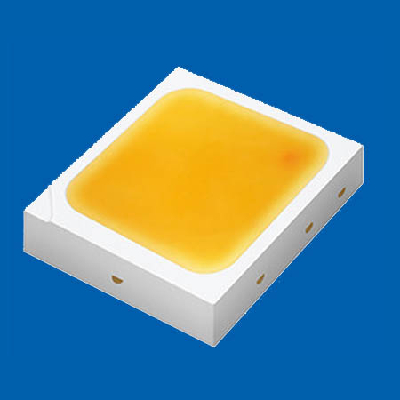

- Model Number: JLE-3030S6A2N
| Model | JLE-3030S6A2N |
| Drive Current | 150mA |
| Input Voltage | 5.8-6.8V |
| Power | 1W |
| CCT | 2800K~6500K |
| Flux (lm) | 120-130 lm |
| CRI | >80 |
| Color Difference | <6 |
| Luminous efficiency (lm / w) | >110 |
| Dimensions (mm) | 3*3*0.52 |
Product Features:
1.High luminous intensity and high efficiency.
2.High Reliability an Anti-UV.

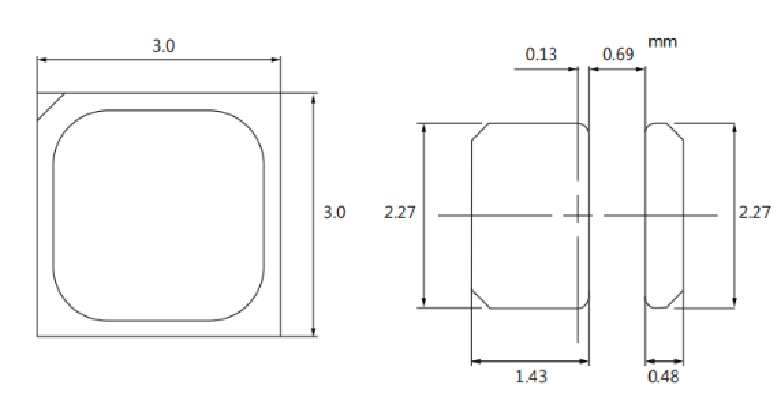

3.Package size:3.0*3.0*0.52mm.
4.Wide Viewing angle:120°.
5.Soldering methods:Reflow soldering.
6.RoHS compliant.
| Model | Drive Current | Input Voltage | Power | CCT | LM (lm) | CRI | SDCM | Dimensions (mm) |
| JLE-3030S6A2N -3080A | 150mA | 5.8-6.8V | 1W | 2800K~3200K | 120-130 lm | >80 | <6 | 3*3*0.52 |
| JLE-3030S6A2N -4080A | 150mA | 5.8-6.8V | 1W | 3700K~4200K | 120-130 lm | >80 | <6 | 3*3*0.52 |
| JLE-3030S6A2N -6580A | 150mA | 5.8-6.8V | 1W | 5600K~6500K | 120-130 lm | >80 | <6 | 3*3*0.52 |
---------------------------------------------------------------------------------------------------------------------------------------------
Absolute Maximum Ratings at Ta=25°C：
| Forward Current | Peak Forward Current | Power | Operating Temperature | Junction Temperature | Storage Temperature | Electrostatic Discharge | Soldering Temperature | Reverse Voltage |
| 200mA | 225mA | 1.28W | -35-85°C | 125°C | -35-90°C | 2000 | 260±5°C | 10V |
