Product Details
- Place of Origin: guangdong
- Brand Name: Prosperous Star
- Model Number: JDS-40XX060R1-LI
| Model | JDS-38XX065R1-LT |
| Power | 0.87W |
| VF | 63-70V |
IF | 13mA |
| CCT | 2500K~7000K |
| Luminous Flux | 115~145 lm |
| CRI | >80 |
| Luminous efficiency | >140 lm/W |
| Dimensions | 38mm |
1. Indoor Lighting.
2. Decorative Lighting.
Features:
1.High luminous intensity and high efficiency.
2.High Reliability.

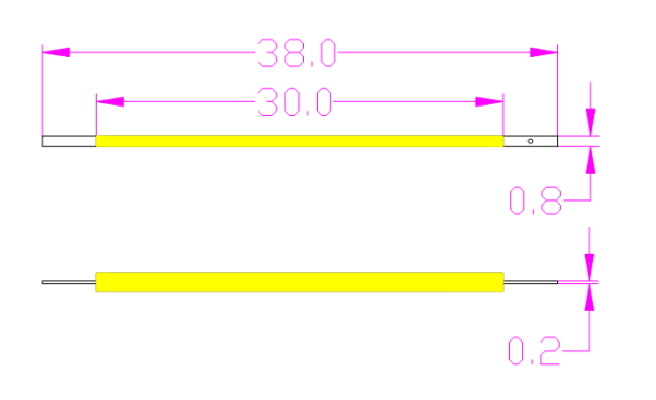

3.Package size: 38×1.0×1.2 mm.
4.Wide viewing angle: 360°.
5.RoHS compliant.
Electro-Optical Characteristics (25°C）：
| Model | Power | CCT(K) | Luminous Flux(lm) | CRI | Efficiency(lm/w) | IF(mA) | VF(V) |
| JDS-38WA065R1 | 0.87 W | 2580~2870 | 115~125 | >80 | 140 | 13 | 63~70 |
| JDS-38WB065R1 | 0.87 W | 2870~3220 | 120~130 | >80 | 150 | 13 | 63~70 |
| JDS-38NA065R1 | 0.87 W | 3710~4260 | 130~145 | >80 | 160 | 13 | 63~70 |
| JDS-38NB065R1 | 0.87 W | 4745~5311 | 130~145 | >80 | 160 | 13 | 63~70 |
| JDS-38CA065R1 | 0.87 W | 5310~6020 | 130~145 | >80 | 160 | 13 | 63~70 |
| JDS-38CB065R1 | 0.87 W | 6020~7040 | 130~145 | >80 | 160 | 13 | 63~70 |
---------------------------------------------------------------------------------------------------------------------------------------------
Absolute Maximum Ratings at Ta =25°C：
| Parameter | Forward Current | Peak forward current | Power | Operating Temperature | Junction Temperature | Storage Temperature | Electrostatic Discharge | Soldering Temperature | Reverse Voltage |
| Symbol | IF | IFP | Pd | Topr | Tj | Tstg | ESD | Tsol | VR |
| Rating | 13 | 20 | 1000 | -35 to 85 | 125 | -35 to 90 | 2000 | 260±5 | 10 |
| Unit | mA | mA | mW | ℃ | ℃ | ℃ | V | ℃ | V |
